Pinnacle® CRV 2000 DR

Pinnacle CRV-2000
Pinnacle® CRV 2000 DR - Image 2
DR Panel
Smart Generator
Pinnacle Vet System with Elevating table
Pinnacle Vet System with elevating table control panel

Pinnacle® CRV 2000 DR

Presenting a Fully Customizable, And Fully Loaded Pinnacle Veterinary Full Digital X-ray System.

Categories: Pinnacle-Vet, Veterinary Equipment, Veterinary Radiography Systems, Veterinary Systems Tags: Pinnacle-vet, Vet-system
  • Description

Description

Pinnacle® CRV 2000 DR

Full Digital Veterinary X-Ray System

Specifications

» 6-Way Elevating Table.
» Elevation from 18″ to 30″ for easier patient transfer.
» 32kW High Frequency Generator with Anatomical Programming.
» Tubestand Mounted Touch Screen Controls and Image Preview.
» State of the art Pinnacle V-Tech 17″ x 17″ Cesium Fixed DR Detector.
» Excellent dynamic range and stable operation.
» High image throughput of radiographic exams.

PINNACLE® DIGITAL RETRO-FIT FEATURES

PINNACLE® 17″x17″ or 14″x17″ Fixed Cesium Panel systems directly captures the image data and displays it on an acquire computer workstation within 10 seconds from exposure.

Adaptable to most existing x-ray systems with universal grid cabinets.

  • Flat Panel Detector requires less space.
  • Eliminates cost and space of film processing/CR (film, chemistry, maintenance, film storage, cassettes).

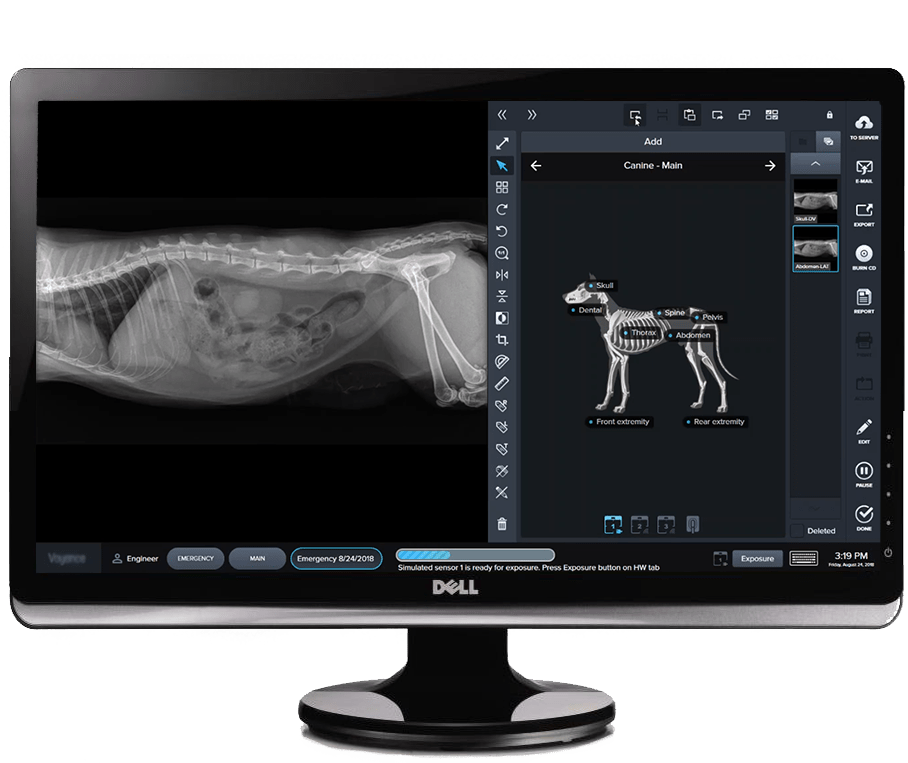

  • Full featured Acquisition & Viewer Station with mini-PACS software.

PINNACLE® Smart Generator® FEATURES

  • 32kW, HF Single Phase Generator
  • 40 – 125kV Range
  • 10 – 400 mA Range
  • 0.1 – 500 mAs Range
  • Exposure Time Range: 1 ms – 6.4 s
  • Technique Selection: kV/AEC, kV/mAs, kV/ma/ms
  • Integration with software  (Optional)
